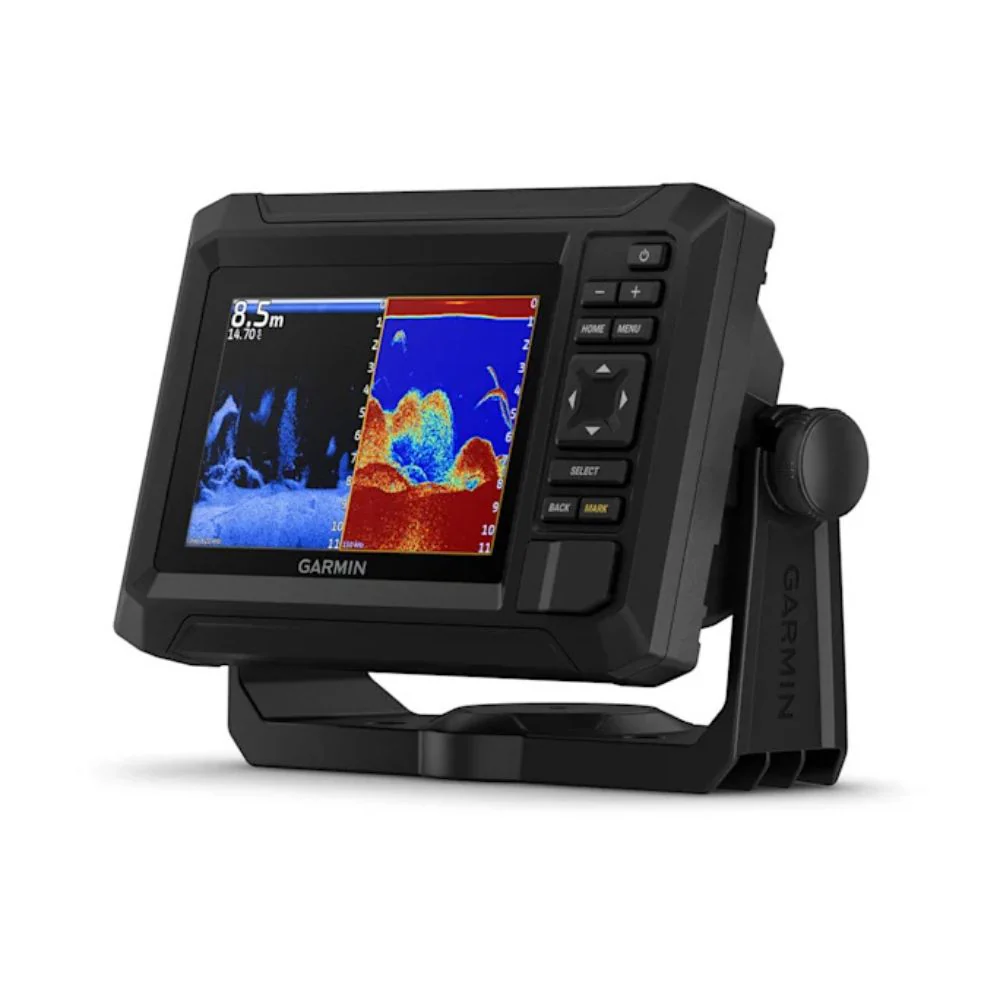

Garmin | ECHOMAP™ UHD2 5" Chartplotter 55cv W'out Transducer | Incl. Garmin Navionics+ U.K. & Ireland Mapping
* This is a very limited special offer. Buy now and save lots. We have limited stock so make sure and buy early and get this amazing deal.
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.
The bright 5″ or 7″ keyed display is made for convenience.
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars (transducer sold separately)
What’s under the water looks even better with high-contrast vivid colour palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in Garmin Navionics+™ charts or optional Garmin Navionics Vision+™.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide (transducer sold separately).
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
| General | |
|---|---|
| Dimension | 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Yes |
| Maps & memory | |
|---|---|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+™ (Coastal) | Yes (see Additional) |
| Garmin Navionics+ (Inland) | Yes (see Additional) |
| Optional map support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter features | |
|---|---|
| ActiveCaptain Mobile Planning Compatible | yes |
| Electrical features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar features & specifications | |
|---|---|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
| Connections | |
|---|---|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
| Security Information | |
|---|---|
| Security updates until at least (YYYY-MM-DD) | 2024-10-25 |
Without Transducer
- ECHOMAP Unit
- Power/data cable
- 8-pin to 4-pin transducer adapter cable
- Bail mount
- Flush mount
- Hardware
- Documentation
* This is a very limited special offer. Buy now and save lots. We have limited stock so make sure and buy early and get this amazing deal.
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.
The bright 5″ or 7″ keyed display is made for convenience.
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars (transducer sold separately)
What’s under the water looks even better with high-contrast vivid colour palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in Garmin Navionics+™ charts or optional Garmin Navionics Vision+™.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide (transducer sold separately).
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
| General | |
|---|---|
| Dimension | 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Yes |
| Maps & memory | |
|---|---|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+™ (Coastal) | Yes (see Additional) |
| Garmin Navionics+ (Inland) | Yes (see Additional) |
| Optional map support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter features | |
|---|---|
| ActiveCaptain Mobile Planning Compatible | yes |
| Electrical features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar features & specifications | |
|---|---|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
| Connections | |
|---|---|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
| Security Information | |
|---|---|
| Security updates until at least (YYYY-MM-DD) | 2024-10-25 |
Without Transducer
- ECHOMAP Unit
- Power/data cable
- 8-pin to 4-pin transducer adapter cable
- Bail mount
- Flush mount
- Hardware
- Documentation
Original: $488.44
-65%$488.44
$170.95Description
* This is a very limited special offer. Buy now and save lots. We have limited stock so make sure and buy early and get this amazing deal.
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.
The bright 5″ or 7″ keyed display is made for convenience.
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars (transducer sold separately)
What’s under the water looks even better with high-contrast vivid colour palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in Garmin Navionics+™ charts or optional Garmin Navionics Vision+™.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide (transducer sold separately).
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
| General | |
|---|---|
| Dimension | 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Yes |
| Maps & memory | |
|---|---|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+™ (Coastal) | Yes (see Additional) |
| Garmin Navionics+ (Inland) | Yes (see Additional) |
| Optional map support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter features | |
|---|---|
| ActiveCaptain Mobile Planning Compatible | yes |
| Electrical features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar features & specifications | |
|---|---|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
| Connections | |
|---|---|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
| Security Information | |
|---|---|
| Security updates until at least (YYYY-MM-DD) | 2024-10-25 |
Without Transducer
- ECHOMAP Unit
- Power/data cable
- 8-pin to 4-pin transducer adapter cable
- Bail mount
- Flush mount
- Hardware
- Documentation
